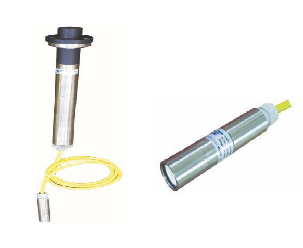

Piezometers
Piezometers measure PRESSURE and are available in several pressure ratings from 345 to 6895 kPa.
Operating principle & output signal
The Piezometer consists of internal strain gages which convert mechanical motion into an electronic signal. Resistance is proportional to the strain experienced by the sensor. If a wire is held under tension, it gets slightly longer and its cross-sectional area is reduced. This changes its resistance (R) in proportion to the strain sensitivity (S) of the wire's resistance.
When a strain is introduced, the strain sensitivity, which is also called the gage factor (GF), is given by:
As fluid pressure is applied to the exposed side of the flexible diaphragm, the diaphragm deflects, causing a change in the resistance of the strain gauge. The resultant resistance output can be measured in 4-20mA or 0-10mV and converted into Engineering Units using a strain gages readout.
- Outer body SS
- Internal strain gauge sensor
- Internal pressure diaphragm
- Filter tip (high or low air entry)
- Cable up to 70m
- Various outputs
Components / Specifications:
- Fast response
- Suitable for dynamic measurements
- High accuracy
- Easy to read upto 70m deep
- Can be easily automated
- Various outputs
